Understanding Aquarium Filtration Systems

To keep your underwater world healthy, you rely on a filter. A good aquarium filter is the life support of your fish tank - it helps keep your fish in great shape and your water crystal clear. Without proper filtration, toxic buildup happens quickly. Your fish depend on it every single day.

Every effective setup operates with three main components. Mechanical filtration traps visible debris like fish waste. Chemical filtration removes invisible toxins and odors. Biological filtration generates benefits, such as natural processes that break down harmful ammonia.

This manual offers practical guidance to help you select and maintain filters. You may also learn about the functionality of each part in an actual tank. A few easy maintenance steps can help you avoid a major disaster. Start saving your aquatic investment today!

Under-gravel filters are some of the oldest aquarium filtration systems still in use today. These simple designs have kept my fish healthy since the 1950's. They are still popular for the same reason: they work reliably and simply. Proven performance without a lot of tech involved.

Cost is still the appealing factor for those aquarists on a budget. Simple basic models start at about $8, and even for premium versions, prices hardly exceed $60. A great deal cheaper than most other filters today, and you get efficient biological filtration into the bargain.

These filters function by drawing water through your substrate. Healthy bacteria will inhabit the gravel bed. These bacteria will naturally destroy harmful ammonia. This establishes a sizable biological filter directly beneath your fish.

Under-gravel filters are not very satisfactory for planted tanks or heavily polluted tanks. The roots of the plants inhibit the flow through the gravel, and the excrement of large fish exceeds the system's capacity to cope with. Use this type of filter only for a properly conditioned tank.

UV sterilizers are supplementary aquarium sterilization, not primary killing devices. Ultraviolet light breaks down DNA in microorganisms, preventing reproduction in algae spores, among other things, and in microorganism pathogens themselves. You never rely on UV for the complete sterilization of water.

The ultraviolet method is very effective at targeting free-floating threats. When water moves through the chamber of the sterilizer, the UV radiation annihilates cellular structures. This eradicates the harmful organisms before they are disseminated. The technology works especially well against waterborne diseases.

Use in conjunction with osmotic filtration and biological media. For UV light to penetrate and disinfect effectively, and for the unit to work properly, there must be no debris present.

To best position your sterilizer, ensure it is installed after your other filtration processes have been completed. The water must be clear for the UV light to effectively destroy algae and pathogens; therefore, it is best to put them into the return lines from your canister filters. This will allow your sterilizer to provide maximum contact with the UV radiation.

Source: commons.wikimedia.org

Green Water Control

• Effectiveness: Ultraviolet light eliminates free-floating algae cells that cause persistent green water issues in freshwater aquariums
• Treatment Duration: Continuous operation for three to five days is typically required to completely clear severe algal bloom situations
• Flow Rate: Optimal water flow ranges between 100-150 gallons per hour for standard 40-gallon aquarium setups to ensure proper exposure
• Bulb Replacement: UV bulbs gradually lose intensity and must be replaced every six to twelve months to maintain consistent sterilizing performance
• Positioning: Always install after mechanical filtration to ensure only clear water reaches the sterilizer chamber for maximum efficiency
• Limitation: Does not address root causes like excess nutrients or prolonged lighting durations which require separate management strategies

Source: www.flickr.com

Disease Prevention

• Pathogen Control: Neutralizes waterborne parasites including Ichthyophthirius and bacterial pathogens before they can infect healthy fish populations
• Exposure Requirements: Slower flow rates are essential to ensure adequate contact time with ultraviolet radiation for effective microorganism destruction
• Treatment Gap: Cannot eliminate parasites already attached to fish or those residing in substrate which require medication treatments
• Quarantine Protocol: Essential equipment for hospital tanks treating contagious diseases in isolated fish with controlled environments
• Maintenance: Regular cleaning of quartz sleeves prevents mineral deposits from blocking ultraviolet penetration and reducing effectiveness
• Effectiveness Range: Works best against free-swimming parasite stages in the water column but cannot affect dormant cysts or spores

Source: islandinthenet.com

Water Clarification

• Particle Removal: Clears microscopic debris causing persistent haze that standard mechanical filters cannot capture due to size limitations
• Flow Optimization: Requires calibrated flow rates significantly slower than conventional filtration systems to ensure proper UV exposure duration
• Sleeve Maintenance: Clean quartz sleeves monthly using vinegar solution to maintain maximum UV transparency and radiation efficiency
• Pre-filtration Need: Functions optimally when water has passed through mechanical media first to remove larger particulate matter
• Temporary Solution: Does not replace proper biological filtration or regular aquarium maintenance routines needed for long-term stability
• Visual Impact: Delivers noticeably clearer water within forty-eight hours of continuous operation by eliminating suspended microorganisms

Source: commons.wikimedia.org

Reef Tank Applications

• Coral Protection: Reduces bacterial infections threatening sensitive stony corals and anemones by controlling waterborne pathogens
• Parasite Management: Controls marine parasites like Amyloodinium in fish-only saltwater systems during outbreak prevention phases
• Sump Positioning: Install after protein skimmers in sump systems to avoid ozone interference and maximize contact efficiency
• Plankton Caution: May harm beneficial microplankton; use timer-controlled operation in reef tanks to preserve ecosystem balance
• Salinity Consideration: Salt creep can damage units; position away from salt spray areas and use protective covers
• Intensity Control: Use variable wattage models to adjust for different tank inhabitants' sensitivities to ultraviolet exposure

Source: www.flickr.com

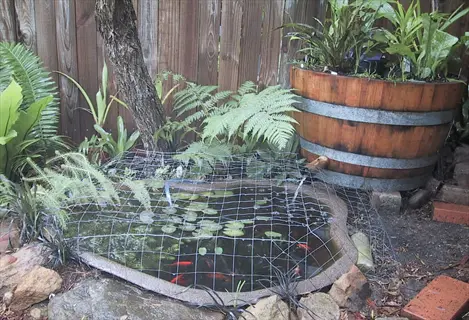

Pond Systems

• Scale Requirements: Higher-wattage units (minimum 18W) needed for effective treatment in 500-gallon ponds with dense fish populations
• Installation Order: Position after mechanical filters to prevent debris clogging and UV blockage in outdoor water features
• Weatherproofing: Essential to use outdoor-rated waterproof units with sealed electrical components for all-season reliability
• Seasonal Operation: Most effective during warmer months when algae growth peaks in outdoor ponds with increased sunlight
• Flow Adjustment: Lower flow rates during spring algae blooms maximize contact time effectiveness for green water elimination
• Maintenance Access: Ensure easy access for quarterly bulb replacements and sleeve cleanings to maintain optimal performance

Finding affordable aquarium filtration systems for under $50 means pricey set-ups won't prevent you from starting your delightful hobby. Low-cost sponge filters usually cost less than $20 complete. Basic hang-on-back models fall within the $25-$ 45 category. You protect your fish without draining your wallet.

Sponge filter Top choice for nanos and breeding. Gentle suction means no baby fish getting sucked up, and running them off air costs literally just pennies. I've bred and raised betta fry in nothing but 5-gallon sponge filter tanks.

Assess the long-term costs of the budget options. Sponge filters require an annual replacement cost of $5. Hang-on-back style units involve a $10 monthly fee for cartridges. Internal power filters cost approximately $8 per month. Your selection will affect the water quality in your aquarium and the total costs.

Biological filtration delivers the most value in any system. Beneficial bacteria remove toxic ammonia naturally. Focus on preserving these colonies during maintenance. This natural process outperforms expensive chemical solutions.

Mechanical filtration is the process of trapping debris, such as fish waste and uneaten food, in a medium &- filter sponges, as well as filter floss, that mechanically traps debris as small as 50 microns in size. The water is kept visibly clear; however, if dissolved toxins are present, they will not be removed by this method. Regularly cleaning the filter media will prevent clogging and improve the flow.

Chemical filtration using activated carbon or resins removes medications, tannins & heavy metals from water. The process works through adsorption, where toxins attach themselves to the cover to remove them from the water. Avoid using these for more than a month at a time, as they should be replaced periodically.

Biological Filter Fish waste contains ammonia, which must be filtered out and converted into nitrates by beneficial bacteria. This natural phenomenon, known as the nitrogen cycle, occurs in ceramic rings or bio-balls. Do not clean biological media with tap water. Chlorine destroys these essential bacterial colonies.

All three methods form a balanced aquarium filtration system. Mechanical filtration removes solids. Chemical filtration removes dissolved toxins. Biological filtration removes invisible ammonia threats. Without any of these three methods, water quality and fish health may be at risk.

Set yourself up with a maintenance regimen for your aquarium filtration systems. Clean the mechanical media each week during your partial water changes. Replace the chemical cartridges monthly and perform a and deep clean every three months. You don't want to wait for it to fail suddenly and endanger your fish while trying to fix it.

Preserve biological media! Often made of ceramic rings or bio-balls, this media contains the necessary bacteria to support the growth of beneficial microorganisms. Soak them, but do not scrub them or rinse them too hard unless water is not moving through them as it should. I've seen tanks go south by overcleaning biological media. Protect those colonies as if their fish lives depend on it.

Different filters require different things. Canister filters should be completely disassembled every six months, rinsing O-rings and checking impellers. A sponge filter that receives weekly squeezes of tank water. Hang-on-back filters require impeller cleaning every month. Each to their own!

Always rinse your media out in tank water; the chlorine in tap water will quickly kill off beneficial bacteria. When performing a water change, keep a bucket of aquarium water nearby, into which you can swish your media. By following this simple routine, you preserve your biological filtration.

Aquarium filtration systems are the foundation of health in any aquarium, as they remove toxins and efficiently oxygenate the water.Without high-quality filtration, your fish will suffer significant amounts of stress and become ill. Without proper filtration, your aquarium would quickly become a toxic environment.

Select a filter that meets your individual tank needs. Nano tanks suit sponge filters. Cichlid tanks need canisters. Features don't kill, but low biological capacity creates ammonia spikes.

Proper maintenance creates significant long-term savings. Weekly cleaning of mechanical media prevents inconvenient replacements. Caring for biological press can help you avoid panic treatments. Simple, regular habits, such as rinsing items in slightly warmer tank water, contribute to their longevity. You spend less on replacements and medications.

Use reliable, simple systems and improve as you become more experienced. Many beginners use simple sponge filters. Chemical filtration can be used to address specific water quality issues. Complex systems can come later. Boost your confidence by enjoying and maintaining your aquariums.
